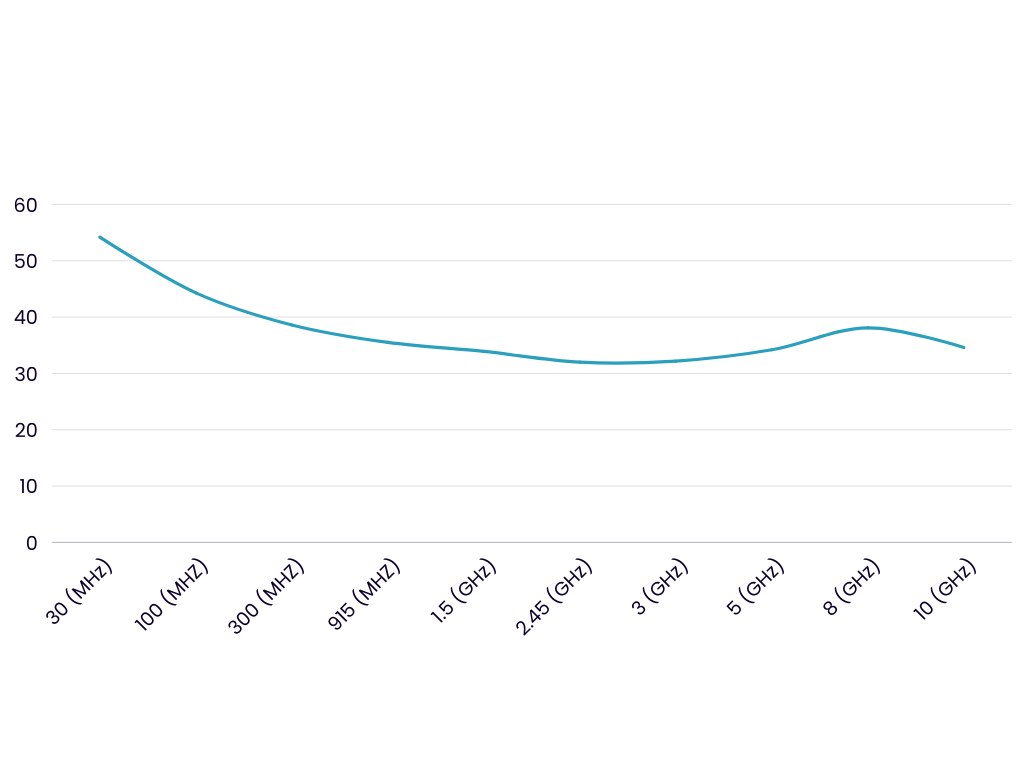

Bamboo EcoShield™ Shielding Effectiveness
Tests performed in accordance with GB/T 30142-2013
- Peak shielding effectiveness: 54 dB
- Consistent range: ~34–54 dB across 30 MHz–10 GHz
- Equivalent to blocking 98.2% – 99.8% of RF radiation

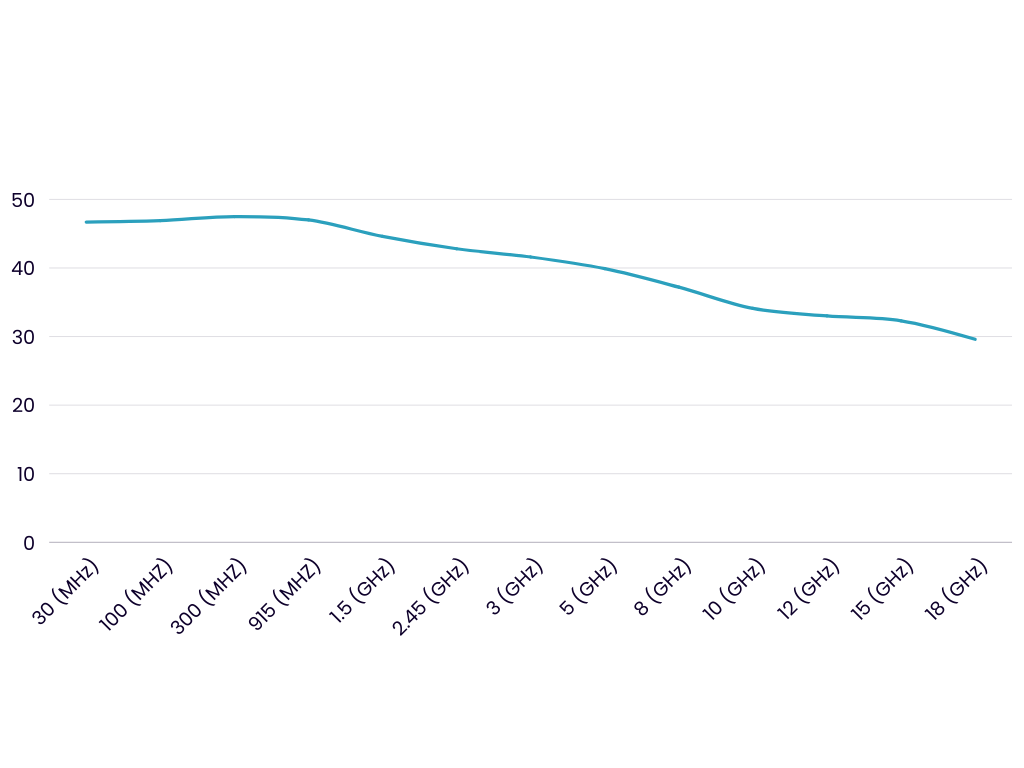

silver ecoshield™ shielding effectiveness
Tests performed in accordance with GB/T 30142-2013
- Peak shielding effectiveness: 47.5 dB
- Consistent range: ~29.6–47.5 dB across 30 MHz–18 GHz
- Equivalent to blocking: 96.7% – 99.6% of RF radiation
How to calculate the percentage shielded
Lab tests usually show shielding in decibels (dB). The higher the dB number, the more signal is reduced. To convert dB into a percentage, this formula is used:
% blocked = (1 − 10^(−dB/20)) × 100
For example:
- 35 dB = 98.2% blocked
- 54 dB = 99.8% blocked

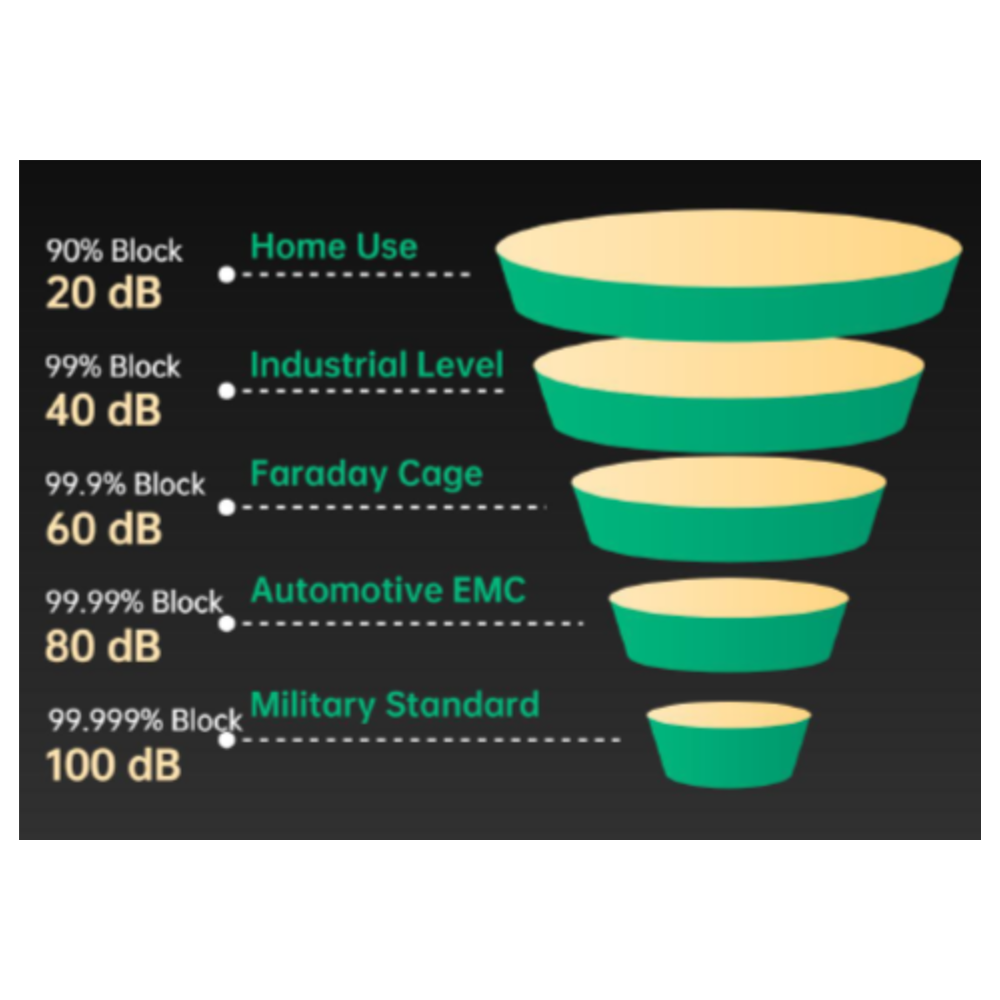

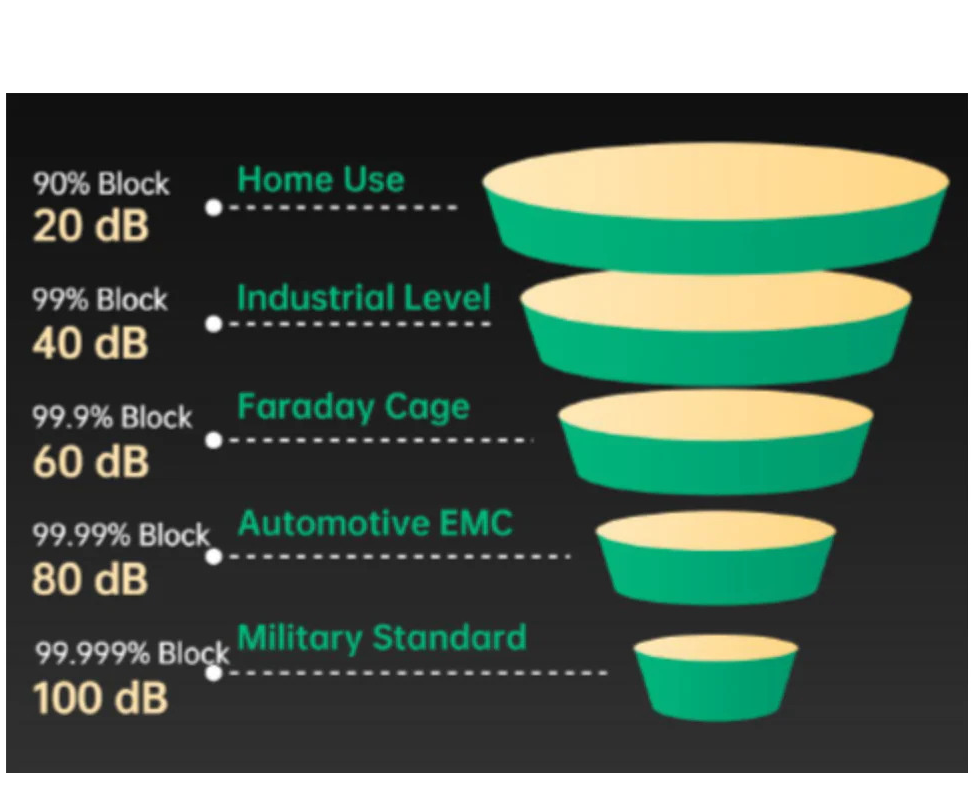

Once shielding goes past about 50 to 60 dB the percentage blocked hardly changes. At that level you are already in the highest range of protection and a product tested at 80 dB will not feel any different in real life use.
